Shimano Hydraulic Disc Brake Set
MT200
AED 350.00

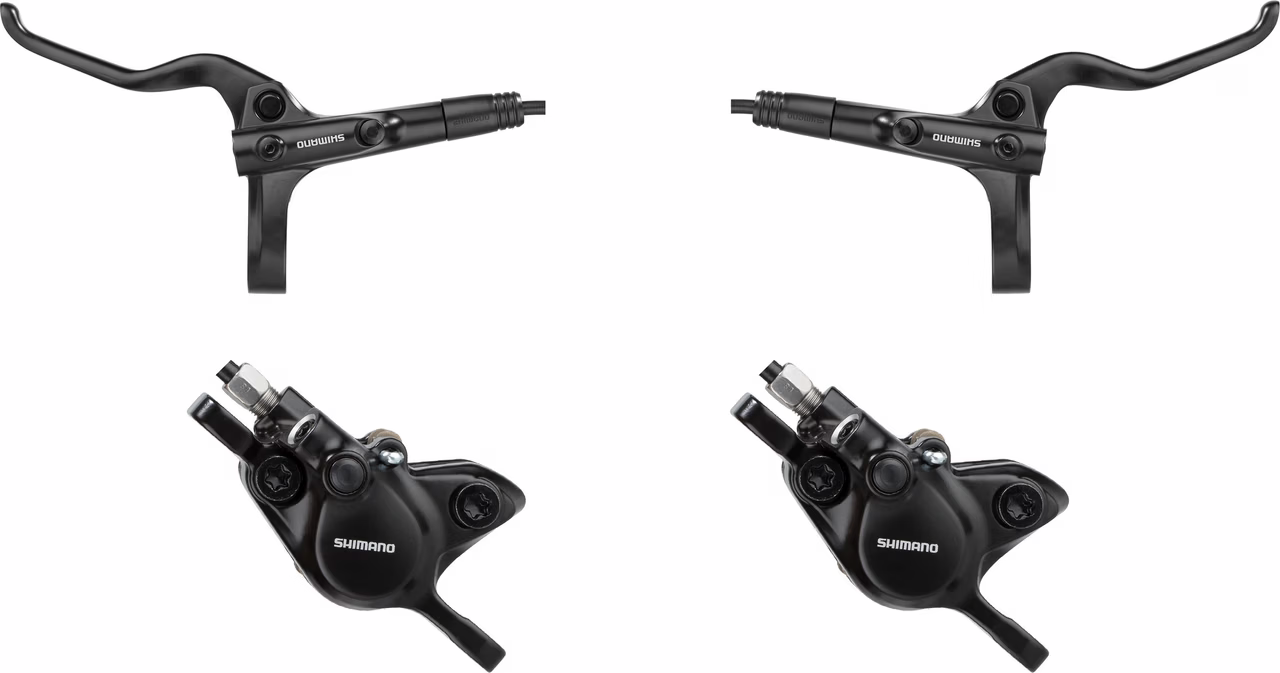

Shimano BR-MT200 + BL-MT201 disc brake set - adapted brake power
The Shimano BR-MT200 + BL-MT201 front + rear disc brake set provides the rider with braking performance adapted to the level of MTB beginners. However, it is also suitable for use on touring or city bikes. The two 2-piston calipers work reliably and largely quietly and can be easily bled via One-Way Bleeding. The encoder side has two 3-finger brake levers whose grip width can be adjusted with a tool. This means that even smaller hands can find a comfortable setting for the brake handles.
Specifications:
Application:
Cross Country, City & Touring
Type:
hydraulic, 2 pistons
Actuation:
mineral oil
Hose:
SM-BH59-JK-SS
Hose Length (Front/Rear):
1000 mm/1700 mm
Technical Information - Caliper:
Caliper Mount:
post mount
Pads:
resin
Design:
2-piece
Calliper Material:
aluminium
Piston Material:
resin
Hose Connection:
straight
Technical Information - Lever:
Lever Length:
3-finger
Adjustment Options:
reach adjust (with tools)
Mount:
clamp (closed)
Design:
right (side-specific), left (side-specific)
Brake Lever Material:
aluminium
Brake Lever Housing Material:
aluminium
Hose Connection:
straight
Compatibility:
Mounting Position:
front brake caliper: brake lever left
rear brake caliper: brake lever right
Brake Rotor:
160 mm, 180 mm (recommended: SM-RT10, SM-RT26)
Pads:
organic; with wide pad shape; standard brake pads (no Ice-Tech)
Features:
Brake Lever:
versatile design suitable for a wide range of bike types
braking power adapted to MTB beginners
small hands can easily reach lever
funnel venting with M5 funnel
anodised lever, painted body
steel clamp bolt
Brake Caliper:
versatile design suitable for a wide range of bike types
braking power adapted to MTB beginners
reliable, quieter braking performance
easy, fast and clean installation
reduced rattling noises of the brake hoses
2 pistons made of synthetic resin
painted
steel bolts (5 mm)
Technology:
One-Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.
Manufacturer Number:
E-MT201KLFPRA100 + E-MT201KRRXRA170
Contents:
2 x Shimano BR-MT200 + BL-MT201 disc brakes, front & rear
1 x Shimano SM-BH59-JK-SS brake hose, 1000 mm (front)
1 x Shimano SM-BH59-JK-SS brake hose, 1700 mm (rear)
2 x pairs Shimano brake pads
2 x inserts
2 x olives
4 x calliper bolts
2 x snap ring
ready to mount (filled & bled)
Order Together:
TL-BH61 tool for insert installation
