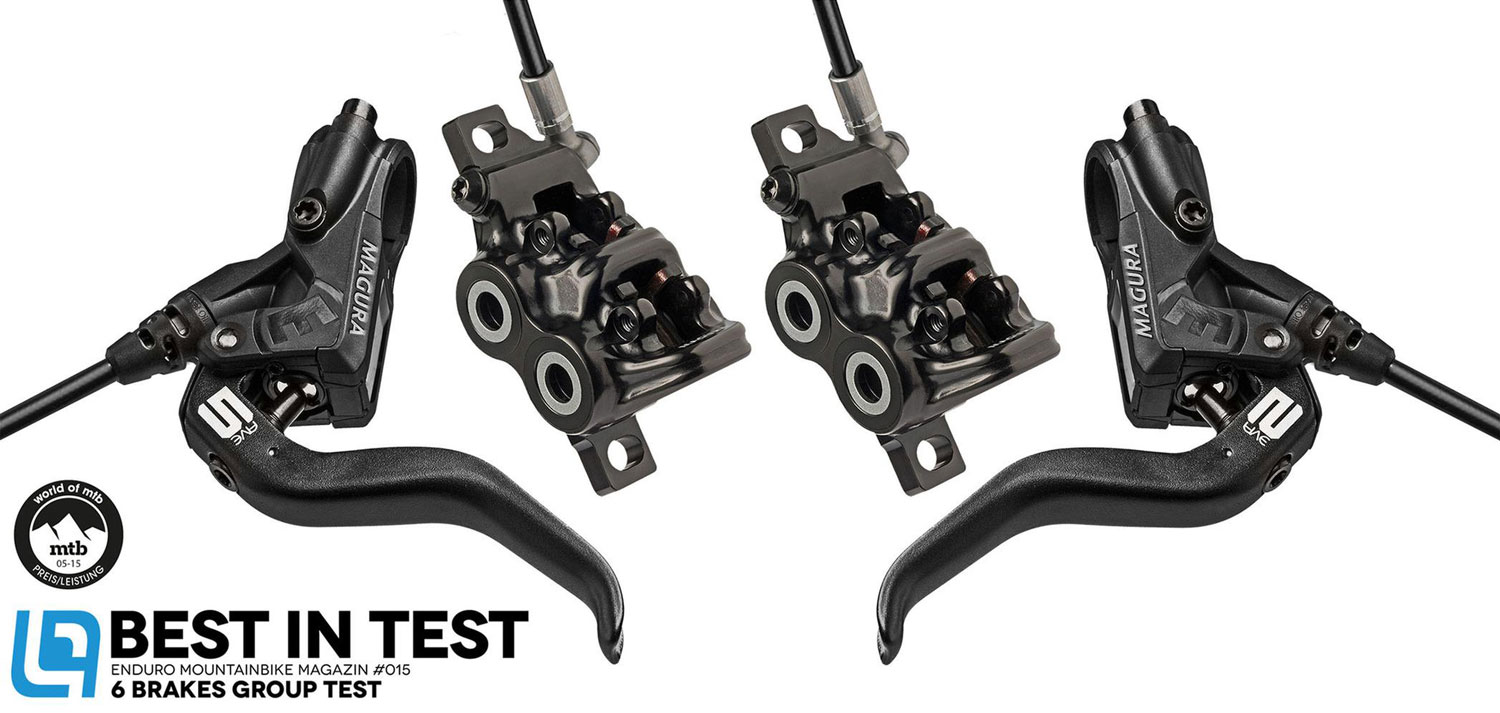

Magura MT5 Disc Brake Set

The full gravity-braking power of the 4-pistons is now available as an affordable entry-level model. All genes of the MT7 are also in the Magura MT5, an ideal brake for downhill and enduro use. It is reliable and strong, yet light.

Class adapted for use on cycles, motorcycle racing's proven 4-piston technology creates an absolute maximum of braking force. No matter how difficult the trail terrain, our 4-piston technology and novel new ergonomics in the brake lever give you a performance package which will fill you with confidence. The MT5 is also perfect for S-Pedelecs. The aluminium, two-finger brake levers are ergonomically perfect for your hands, allowing you to easily and accurately apply the braking power you need, even during long braking actions. Our use of Carbotecture® technology in the brake handle housing keeps the MT5's weight down to a minimum and provides optimal braking performance.

Features - Magura MT5

• Ergonomic, 2-finger, aluminium brake lever

• Carbotecture® housing & handlebar clamp

• Adjustable lever reach All-in-one,

• 4-piston brake calliper with banjo

• MagnetiXchange brake pistons for easy brake pad replacement

• Compatible with all MAGURA Storm and Storm SL discs

Product Features

• Use: MTB

• Technical features: Full hydraulic dual piston floating caliper

• Hydraulic system: Open, with expansion chamber

• Mounting: Postmount

• Postmount mounting (PM) only front: Yes, direct mount

• Disc diameter (mm): Front 203/8, 180/7, 160/6 Rear 203/8, 180/7, 160/6, 140/5 (ONLY Storm SL)

• Transmission medium: MAGURA Royal Blood mineral oil

• Brake hose: MAGURA disc tube easily shortened

• Hose fitting caliper: RHR - Rotateable house routing

• Brake pads: Organic 9.1 Performance (4 Pistons 2 Pads) 8.1 Performance (4 Pistons 4 Single Pads)

• Material fitting bolts: Steel

• Brake lever and caliper: Carbotecture SL (Master), Aluminium forged (Caliper)

• Lever blade: Aluminium

• Reach adjust: Yes

• OPD (caliper in one-piece design): Yes

• BAT (bite point adjuster): No

• EBT (Easy Bleed Technology): Yes

• 2-Piece Lever Clamp: Yes

• Dual Docking for trigger shifters: Yes

• magnetiXchange: Yes

• Feel-Safety-Ergonomic: Yes

• Brake hose lengths: 2200mm (shortable)

Color

• Black (Master)

• Black (Caliper)

Weight

• ~380g (with 160 mm Storm SL-Rotor)

• ~380g (with 160 mm Storm SL-Rotor)

Rotors and Adapters not included!
